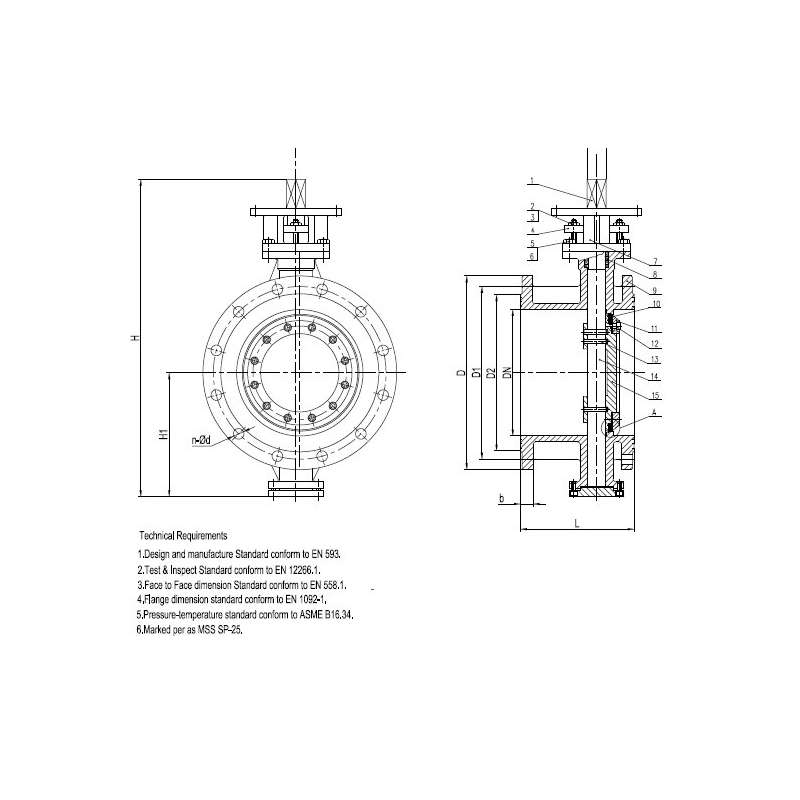

Butterfly Valve Flange Type DN350 PN16 L290 Ni Alu Bronze

Model

Condition New

Warning: Last items in stock!

Availability date:

• Send to a friend

  Send to a friend



  Butterfly Valve Flange Type DN350 PN16 L290 Ni Alu Bronze

  for Pressure Energized System.
  Body Material: Ni-Al-Bronze
  Disc: Ni-Al-Bronze
  Valve Seat Ring: Nitrile

  DN 350mm

  Face to face 290mm

  Details of Existing Actuator; Actuator Connection Top Flange: ISO5211
  Flange Type: F14
  Flange OD: 175mm
  Flange PCD: 140mm
  Shaft Diameter: 45mm Hole: M16 x 4
  Current existing actuator torque for Butterfly Valve PN16 is 1200Nm.
