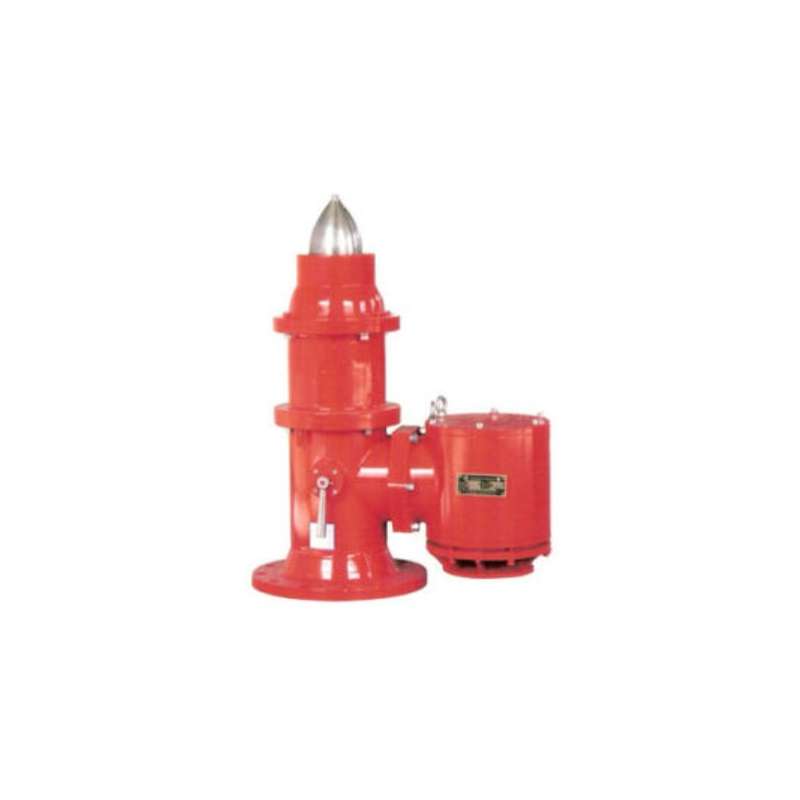

Pressure vacuum valve
New
PV valve
Internal: Stainless Steel 316
Color: Red
Pressure Setting: As per Drawing
Flange Standard: PN10
More info
Pressure Valve | Setting operation pressure(kPa) | Rated working pressure (kPa) | Flow rate (m3/h) | Outlet air flow velocity of pressure valve(m/s) | ||||||
Vacuum valve | Pressure valve | Vacuum valve | Air removal cover | Pressure valve | Vacuum valve | Air removal cover | ||||
KZ100 | 14.0 | -3.5 | 21.0 | -7.0 | 2.0 | ＞800 | ＞600 | ＞400 | ＞30 | |
KZ150 | 14.0 | -3.5 | 21.0 | -7.0 | 2.0 | ＞2500 | ＞2200 | ＞900 | ＞30 | |
Model | Flange OD | PCD | HOLES X DIA OF HOLES |
| KZ100 | 220MM | 180MM | 8 X 18MM |
| KZ150 | 285mm | 240MM | 8 X 22MM |
